Choose high-volume wind machines for demanding air movement tasks
Industrial wind machines and drum fans move large volumes of air through workshops, warehouses, production halls and professional event spaces. Compare airflow capacity, air velocity, discharge direction, speed control, mobility, electrical supply and operating limits to choose the right wind machine for your application.
Use wind machines for high-volume air circulation in large spaces
Industrial wind machines use large axial fan wheels to move substantial volumes of air through an open discharge area. This makes them particularly useful where strong air movement is required across production halls, warehouses, workshops or temporary event spaces.
Unlike smaller workplace fans, these machines are primarily selected for large-scale air circulation and directed airflow. Their performance depends on the room layout, available space and discharge direction. High free-air volume does not automatically mean that a wind machine is suitable for ducted ventilation or installations with significant airflow resistance.
Compare air volume, discharge velocity, pressure and throw distance
Air volume in m³/h describes how much air a wind machine can move under specified conditions. Air discharge velocity, measured in m/s or km/h, describes the speed of the air leaving the fan, while pressure in Pa indicates its ability to overcome resistance.
Some professional wind machines also have a documented air throw distance. This can help when assessing how far the airflow needs to reach, but published throw figures depend on the measurement conditions and should not be treated as guaranteed performance throughout a hall or outdoor area. Compare these values separately and consider the surrounding space, obstacles and intended airflow direction.

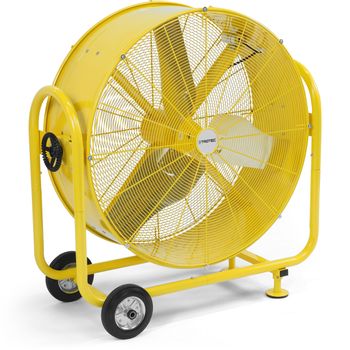

Direct the airflow with a tilting drum or adjustable fan assembly
Many drum fans use an adjustable fan housing or support frame to direct the airflow horizontally, diagonally or towards higher areas. This can be useful when circulating air through a large hall, directing airflow towards an elevated working area or creating a defined wind effect for a professional production.
Check the adjustment range and locking mechanism for the exact model. Not every wind machine offers the same tilt positions, and the direction must only be changed in accordance with the operating instructions. Switch the fan off before adjusting its inclination where required, secure the adjustment mechanism and maintain the specified inlet and outlet clearances.
Choose fixed fan speeds or variable airflow control
Wind machines differ considerably in how their output is controlled. Selected drum fans have two or three fixed operating stages, while other professional models provide stepless airflow adjustment. Some large industrial wind machines use a frequency converter for variable speed control.
Choose the control concept according to the application. Fixed stages can be practical for repeatable ventilation tasks, while finer adjustment is useful when airflow intensity must be adapted to different spaces or wind effects. Compare air volume, power input and sound at the available settings instead of assuming that every machine offers the same control range.
Plan transport, stable positioning and approved stacking
Professional wind machines may have trolley frames, transport wheels, lifting provisions or larger protective structures, depending on their size. Consider the equipment's weight, dimensions, access routes and the available space at the operating location before selecting a model.
Selected machines are designed for stacking during storage, and some models also permit specifically configured stacked operation. These are different approvals and must not be confused. Check the exact operating instructions and approved frame arrangement before planning multiple units, and secure wheels, brakes or supports as specified for the equipment.
Match the electrical supply to the wind machine
Power requirements can differ substantially between wind machines. Some mobile drum fans operate from a compatible 230 V mains connection, while larger professional models require a 400 V three-phase supply and appropriately rated electrical protection.
Before ordering, check supply voltage, current, power consumption, plug type, fuse requirements and any special installation instructions. Larger equipment may require dedicated electrical planning and suitable handling arrangements. Do not assume that a wind machine can be connected to an ordinary workplace socket or operated using an unspecified extension lead.
Use controlled airflow for film, stage and event applications
Large wind machines can also produce directed wind effects for film shoots, stage productions, photography and professional events. Depending on the model, adjustable fan output and discharge direction allow the intensity and position of the airflow to be adapted to the production requirements.
These applications require careful preparation. Strong airflow can move loose objects, materials and equipment, while operating noise and electrical connections must be considered around performers and production crews. Use only approved machine positions and arrangements, establish a suitable safety area and follow the operating instructions for the exact equipment.
Distinguish air circulation from fresh-air ventilation and drying
A wind machine can circulate large volumes of existing air without necessarily introducing outdoor air. Where a building requires a defined fresh-air supply, exhaust-air flow or contaminant removal, the complete ventilation arrangement must be designed for that task. High circulation capacity alone does not establish an air exchange rate.
Strong air movement can also support the evaporation of moisture from suitable surfaces during drying work. The wind machine does not remove that moisture from the building by itself; appropriate dehumidification or air exchange may still be necessary. Likewise, a conventional wind machine is not an air conditioner and does not provide a rated refrigeration capacity.
Assess operating noise, protection rating and site safety
High-volume wind machines generate powerful airflow and can produce substantial operating noise. Compare the documented sound level and measurement distance, and consider the required hearing and eye protection when equipment is used near people or sensitive work areas.
Check the protection rating, permitted air temperature and environmental limits for the exact model. A robust industrial frame does not automatically permit operation in rain, standing water, aggressive atmospheres or potentially explosive areas. Explosion protection requires an explicitly approved equipment variant. Keep protective grilles fitted, secure the machine against unintended movement and maintain all required safety distances.
Check the complete wind machine setup before ordering
Select an industrial wind machine according to the required airflow task, installation conditions and safe operating arrangement rather than maximum air volume alone.
- Define whether the machine will support large-area air circulation, directed airflow, drying assistance or professional wind effects;
- Compare free-air volume, discharge velocity, pressure and documented throw distance as separate performance values;
- Choose fixed or variable speed control according to the required airflow adjustment;
- Check the available tilt positions and permitted adjustment procedure;
- Verify dimensions, weight, access routes, transport equipment and secure operating positions;
- Confirm whether stacking is permitted for storage, operation or both;
- Check the mains voltage, plug, electrical protection, power consumption and site supply;
- Review sound levels, protective grilles, clearances, IP rating and environmental restrictions;
- For ducted air transport, higher system resistance or defined extraction tasks, compare the relevant specialist ventilation equipment.
